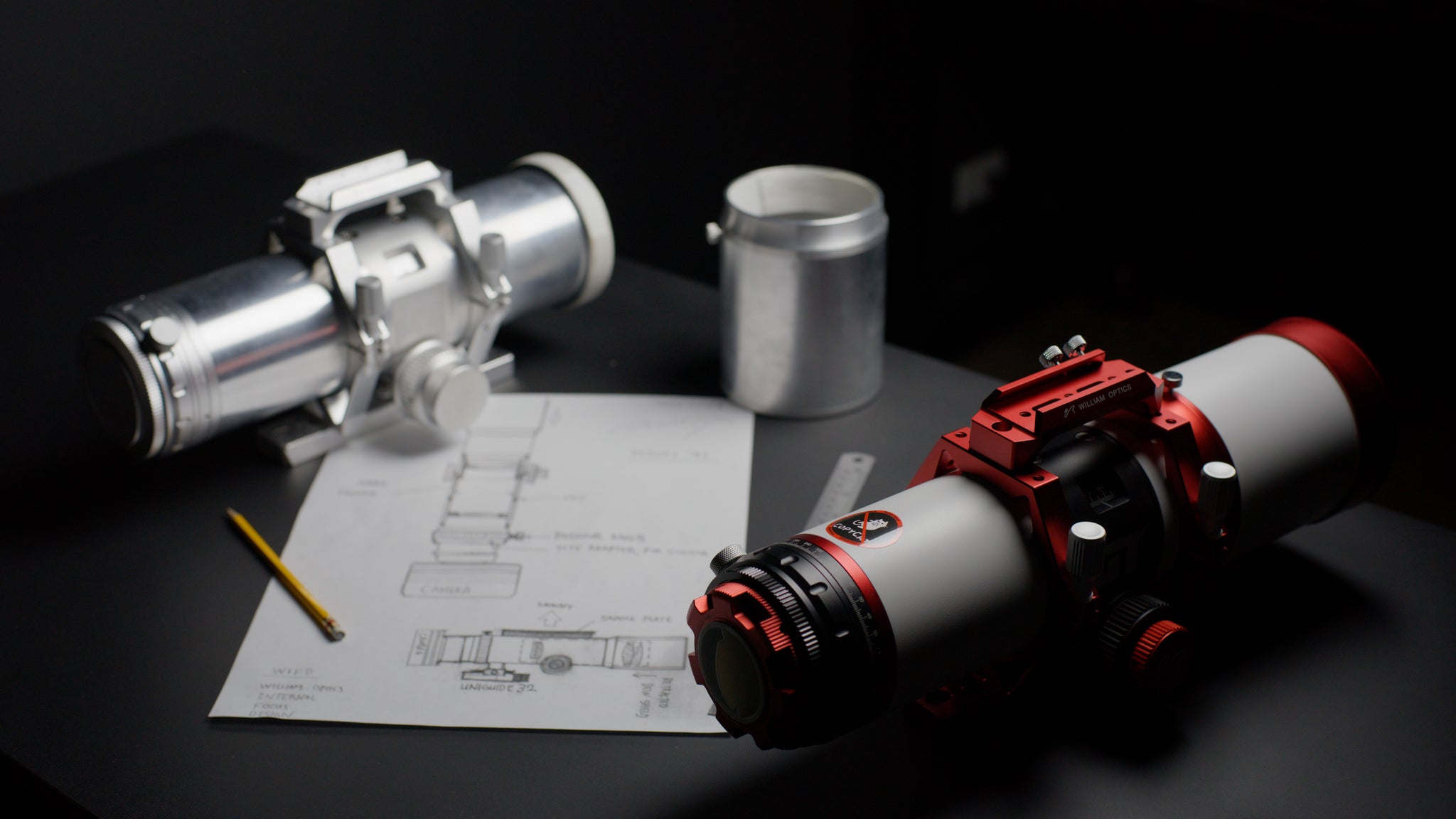

MiniCat 51 WIFD

Apr 18, 2025 by WO Team

WO Image

Specification

Lens Type
6 Elements Petzval Design
Focal Length
178 mm
Diameter
51 mm
Focal Ratio
f/3.5
Image circle
Illuminate up to 43.2 mm
Focuser
WIFD Focuser (Compatible with EAF)
Adapter Included
Tilt Adjuster / Rotator / M54 → M48 Adapter
Optional Flattener
No Flattener Required
T-rings Supported
Canon EF, RF | Nikon F, Z | Sony E | Pentax K | MFT (M4/3) | FUJI X
Camera Format
Full Frame (Compatible) / APS-C (Recommend) / M43
Tube Length
210 mm
OTA Weight
1.67 kg / 3.68 lbs
Total Weight
2.29 kg / 5.05 lbs

Diagram Reports

Spot Diagram
invert
Longitudinal Aberration
invert

Learn how to read Diagram Reports


Size Diagram

invert

Parts

invert

  1. Front Bahtinov Mask Cover
  1. Lens Cover with Bahtinov Mask How to focus with the Bahtinov Mask ?
  1. Dew Shield
  1. WIFD Focuser How to adjust Focuser Tension?
    1. Focus ruler scale Window
    2. Two Speed 1:10 Ratio Fine Knob
    3. Fine Knob Protecting Cover
    4. M4 Screw Holes for Finder Bracket
    5. Focuser Knob with Temperature Gauge ( Can be removed to attach EAF. How to Install EAF? )
  1. Sensor Tilt Adjuster How to adjust Tilt Adapter?
    1. Tilt Adjuster Protecting Cover
  1. Camera Angle Rotator (CAA)
    1. CAA Locking Knob
  1. M54 → M48 Adapter (No M48 Filter Thread inside)
  1. M48 Rear Dust Cap
  1. Handle Bar with Mini Vixen-style Mounting Base
    1. M6 Screw Holes
    2. Mounting Base Locking Screws (M4)
    3. M4 Screw Holes For Locking Screws
  1. Mounting Ring
    1. M4 Screw Holes for Finder Bracket
    2. Mounting Ring Knob
  1. 210mm Dual side Dovetail Plate (Vixen-style & Arca Swiss Type)

Operation Guide

Focuser Tension Adjustment

There’s two side to build WIFD focuser tension:

BUTTON / Rack & Pinion Gear

invert
  • Quick tension adjustment knob
  • Smoothness adjustment - Pull in (3mm Hex)
  • Smoothness adjustment - Push out (2mm Hex)
  • Please Don’t Touch

TOP / Focuser Draw Tube

invert
  • Focuser Draw Tube Tension Screws Please Don’t Touch
  • Guider/Finder bracket mounting screws (2.5mm Hex)
⚠️
The focuser smoothness adjustment ONLY when necessary by progressively push & pull screws until you reach the desired smoothness.
⚠️
When using the telescope with the motor, be sure not to over-tighten the tension screw, as this could damage the focuser. Consider it like driving a car while pressing both the gas and brake pedals simultaneously. Just as this could harm your car's systems, over-tightening the tension screw can compromise your telescope's focuser functionality.

Sensor Tilt Adjustment

  1. Locate the pair of diagonally opposing screws corresponding to the affected corners.
Where is the tilt adjuster?
WO image
WO image

1. Remove the rotator knob.

WO image
WO image

2. Remove the ring cover.

WO image
WO image

3. The tilt adapter is inside.

  1. Use the 2mm hex key to loosen the pull-in screw of the screw group closest to side where stars appear too close, and loosen the push-out screws of the group on the opposite side (too far).
invert
  1. Adjust the push-out screws in the "too close" group and the pull-in screw in the "too far" group until the tilt is corrected.
  1. Gently snug all screws to hold the final position.

Note

  • Make small adjustments at a time—1/8 turn is recommended for fine control.
  • Adjust other screws if necessary to maintain overall balance.
  • If the tilt becomes worse or is severely misaligned, perform a reset:
    • 1. Loosen all push-out screws

      2. Tighten all pull-in screws fully

      3. Back out each pull-in screw by the same number of turns

      4. Begin tilt adjustment again from this neutral position


Installing EAF

WO image
  1. Turn the telescope over and remove the Tension screw.
WO image
  1. Remove the top cover screw near the temperature gauge with 2mm Allen key.
WO image
  1. Release (don’t remove) two inner knob screws.
WO image
  1. Remove the temperature gauge knob.
WO image
  1. Find the flat side on the shaft and turn it to face the hole.
WO image
  1. Put the 5-6mm Flexible coupling on the shaft and lock the two inner screws.
WO image
  1. Put the EAF body on and lock the two inner screws.

On Step 6 & 7:

Please make sure one of the screws is lock on the flat side

invert
WO image
  1. Align the screw holes.
WO image
  1. Lock the four M4 bracket screws.
WO image
